The Present and the Future of Plastic Injection Molding

The Plastic Injection Molding Method Today

Today’s form of the plastic injection molding products are computer managed and plastic raw materials are injected into steel as well as aluminum molds to create the custom plastic name dishes, plastic components and lots of the plastic products we use every single day. Plastic Injection molding products injects hot plastic into the mold and cools the plastic and also extracts the various components. The plastic injection molding tools nowadays make mass production of plastic components simple and easy, economical.

These days, plastic injection molding manufacturers make use of vertical as well as horizontal presses, injection mess presses, electric presses and also hydraulic presses for whatever rate of pressure is required to complete the product pressure to create. This technique produces anything from car parts to license plates as well as tooth brushes.

The Future of Plastic Injection Molding Products, Plastic injection molding is an extremely innovative process that has created numerous useful products that we use each day in our households. As the history of plastic injection molding is very full of creativeness and innovation, the near future is filled with increased possibility as increasing numbers of creative minds add new methods to improve plastic injection molding products and procedure.

As the improvements within the plastic injection machinery continue on, the future of plastic injection molding is currently turning its focus on the molds as well as mold components. High tech plastic molds can be created of metal, epoxy or carbon fiber and may increase output through quicker cooling times as well as cycle times.

The creation of 3D printing provides us a look at how long plastic injection molding can travel into the foreseeable future. 3D printing is a procedure for creating a three-dimensional solid object of almost any shape from the digital model. Using the integration of 3D printing within the plastic injection molding procedure, concepts and samples can be achieved with much less expense.

Some revolutionary minds, even dealt with corn seed producers to exchange traditional petroleum based plastic into corn starchy foods based plastic. l Bio-degradable material is becoming utilized on a restricted scale and you will find many makes use of this material could soon obtain that would astound your brain. All it might take will be the mold and the material to make a new coming trend for plastics engineering. The scientist continues to be researched polymers how they did when plastic injection molding started and their studies unbelievable at this time with many the opportunity to come.

Content resource - https://medium.com/@injectionmolding/he-present-and-the-future-of-plastic-injection-molding-3ff7fc1ed08c#.3trzz9mt5

Plastic injection molding is usually a process that manufactures thermoplastic as well as thermosetting plastic supplies. The process entails delivering the materials using a hot barrel wherever it's melted down for blending. Following becoming melted and also mixed, materials are delivered into a mold wherever it's left for cooling and solidify into the very same shape as the mold. Other supplies, such as aluminum and steel, are usually modeled following a plastic mold also. A number of the plastics contain: nylon, polycarbonate, polymer, Teflon, polystyrene, Acetal, PVC plus much more. Since these are probably the most frequent kinds of plastics, they create it simple for anyone to get the supplies needed for a plastic injection equipment.

Plastic injection molding is made by heating polymer resin under extreme pressure as well as temperatures (generally between 200 °C to 400 °C depending on the consistency as well as material features). When inside a soft, flexible type, the tough polymer is positioned beneath rollers to create a fixed particular shape just before becoming cut to an appropriate shape. What can make injection molding such an idea program is always that it comes at a low price and can produce big quantities of materials. As said before, the plastic injection process is incredibly versatile and may offer a wide array of various molded elements and add a good finish on the components also.

The essential idea in plastic injection molding is placing molten liquid plastic right into a prepared, shaped mold, for example the mold of the bottle. It'll then be able to cool, then your mold will likely be removed to show the plastic bottle. Compression molding usually makes use of vertical presses instead of the horizontal presses useful for injection as well as blow molding. The constituents formed are then air-cooled. If you're preparing to go into an injection molding company, you need to initial know the various processes. Select from a plastic molding procedure that fits your own price range, your expertise, along with your sources.

Two using the fundamental specs of knowing plastic injection molding manufacture are seen chemical knowledge and mechanical skills. As the machines which mold as well as shape the types of materials are complex in technicality and want very skilled workers to function, the polymer resin it ought to be nicely recognized to utilize it appropriately. Even the keyboard as well as the mouse that you use are made via plastic. Perhaps the plastic components using the chair that you are sitting on are made in this way.

Present day varied needs and style abilities have created it feasible to have customized produced plastic items as specified by an individual. The reality that nearly all these plastic products can today be personalized is brought about by the top quality manage methods that have been established by most plastic molding companies and also due to the improvement of advance technological innovation in generating plastics. It is typical to discover these types of manufacturing companies using the thermoplastic injection molding technologies as well as a variety of molding presses as well as programmes in order to meet the criteria of several customers. For this reason utilizing plastic is really prevalent in the production company. It is the greatest response to an excellent amount of product specifications.

Content Resource - medium.com

The Detailed Information about Die Casting

Die casting is definitely the method utilized for pushing molten metal directly into mold cavities beneath high pressure. Die casting is extremely versatile and therefore, will be the widest utilized way of casting a metal. Die casting is comparable to permanent mold casting the only real difference would be that the metal is injected into the mold at quite high pressure of 10-210 Mpa. This results in a more standard part, generally good dimensional accuracy as well as excellent surface finish.

The various metals as well as alloys you can use in die casting are zinc, aluminum, copper, magnesium, tin and also lead. Ferrous metals may also be used for die casting, die casting technique is generally employed in applications where a great quantity is medium or small sized parts are needed with detail, excellent dimension as well as fine surface finish.

You will find namely 2 equipments utilized for die casting cold chamber as well as hot chamber procedures.

Cold Chamber procedure: Within the cold chamber class of die casting, a cold chamber of every module is stuffed with molten metal. Enough time exposure delivers to the molten metal to dive the walls of the mold is less. This clod chamber procedure method is very helpful for metals such as aluminum, copper as well as metals that simply alloy with iron at higher temperatures.

Hot Chamber procedure: Within the hot chamber procedure approach to die casting, the pressure which is linked to the die cavity is permanently and completely in molten metal. As being the plunger moves for the open position which is for the non - pressurized area, the inlet port attached to the pressurizing cylinder is discovered.

The die casting (http://www.tytekindustries.com/die-casting) molds that are utilized in this method are costly and take usually take very long production time. These types of die casting modules will also be known as “dies’

Benefits of Die Casting: The process of die casting provides excellent perspective accuracy. The dimensional precision is really as good as 0.1mm for that first 2.5cms and 0.005 for that first inch. Die casting offers with sleek cast surfaces. Small and thin walls and could be made utilizing the way of die casting walls as tiny as 0.75mm roughly could be casted. Inserts such as thread insert, higher strength bearing surfaces as well as heating elements may also be inserted while using Die Casting method. Die casting will help with reducing or perhaps completely eliminating the usage of secondary machining procedures. The use of the Die Casting method, likewise helps to lessen the production time and a large number of articles can be achieved in an exceedingly short time. Die casting method can also help to retain along with the boost the tensile strength of the metal. It provides tensile strength up to 415 MPa that is 60ksi.

Drawbacks of Die Casting: The casting weight is extremely less hardly in between 30 grams and 10 kgs. Even the size of the material that should be casted utilizing the Die Casting method must small say about 600mm. The entire process of Die Casting needs high budget and can stack up high initial cost. Die casting method helps make the metal porous as much as some extent. Within the Die Casting technique the thickest section must be lower than 13mm or 0.5 inches.
Resource - Medium.com

Know the Plastic Injection Molding Volumes

With more than 16,000 injection molding as well as plastic manufacturing facilities in the USA, there is no lack of companies to select from. When selecting a service provider, many factors need to be taken into account, including capabilities, high quality assurance, cost, company reputation, as well as delivery time. Choosing the best plastic injection molding to suit your needs might seem daunting, but managing your volume needs first and foremost - and just how they might shift over time - can help narrow down your choices.



 As you’ll observe below, plastic injection molding providers usually focus on 1 of 3 volume category:

Low-Volume plastic injection molding

These suppliers focus on jobs requiring less than 10,000 parts. Aluminum tooling is usually utilized for these low-volume runs, permitting fast turnaround times. Low-volume producers are an ideal option for:

Prototyping - Simply because low-volume injection molding is a fast, affordable process, it’s well suited for quickly producing prototypes to check fit, form, function, as well as production-method practicality before finalizing the style.
Low-volume manufacturing runs - For applications which don’t require tens of thousands of parts, but nonetheless necessitate injection molding - such as several medical devices - low-volume plastic injection molding offers an efficient, cost-effective solution.
Market testing as well as pilot manufacturing - Low-volume molding can also be perfect for “bridge tooling,” tooling which bridges the space between small production operates for market testing as well as full-production tooling. This method is also utilized to get products shifting while full production tooling will be completed.

Mid-Volume plastic injection molding

These firms focus on medium-volume production operators, typically in between 10,000-750,000 parts. Based on run size, aluminum or even pre-hardened steel tooling is commonly useful for this process.

High-Volume plastic injection molding

A high-volume plastic injection molder focuses on jobs needing over 750,000 parts. Large-volume molders may reliably produce thousands and thousands of parts along with repeatable accuracy and quality. Since these high-volume professionals have committed to the best-quality solidified steel molds and also the most advanced technology, they sometimes only take orders of 750,000 parts or even more. At.

High-volume plastic injection molding not just permits high-tolerance precision, low scrap decline, and cost savings, additionally, it requires minimal post-production operate.

Find out more

Before getting in touch with a plastic injection molder, make sure to understand their capabilities to guarantee the possible best service and also turnaround times for the project.

When searching for a high-volume producer specifically, consider every aspect of the manufacturing procedure and also the company’s history of quality. Will they offer design, tool making, as well as manufacturing all in one place? Turnkey solutions assist streamline your plastic injection molding(http://www.tytekindustries.com/plastic-injection-molding) procedure and save time.

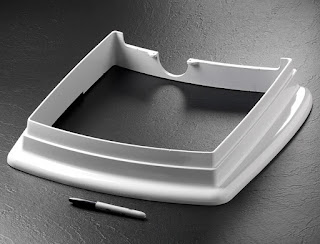

A Complete Review of Aluminum Die Casting

Metal plays an important role in manufacturing companies. Using the improving demand for services, it might be a necessity. There are various types of materials utilized, but one of the very most common is the aluminum die casting. This technique is different rather than the others in ways that it scientifically forces metal directly into mold cavities with high pressure. Many of these are being constructed from non-ferrous metals, which consists of magnesium, zinc, lead, aluminum, copper or even tin based materials.

Exactly what is the History?

In the past, only low-pressure injection means were utilized. Today, tactics of high-pressure aluminum die casting such as squeeze as well as semi-solid methods are utilized to cast above 4500 pounds per sq . inch. As an initial measurement, just lead as well as tin were cast. Now copper, magnesium, and metals are also cast via a very popular process.

The entire process of Metal

The two sections of dies are constructed with alloy steel - The ejector dies half and also fixed die half. The mold is being made together with the component's impact to cast. You will find four types of dies: Single cavity to construct one component, unit die to make various parts at the same time, multiple cavities construct identical parts, and also mixtures to create the various parts for every assembly.

The Amazing Applications

This process would work for their utilizes and applications wherein an enormous quantity of small to mid sized components is being needed with a good quality and dimensional persistence. This material is definitely the preferred one as it makes light-weight parts of aerospace, automobiles, transport, and many more industries. The casting of the material within the metal molds take advantage of the systems such as low pressure, high pressure, as well as gravity, and is an acceptable way to make complex shapes that require a minimum.

Main Advantages Are:

• Dimensional balance for thin walls and sophisticated shapes
• Electrical and high energy conductivity
• Lightweight
• It keeps strength at high temperatures
• Regarding service life, the various components can put up with longer
• It's precise in dimension
• Able to close threshold
• Post machining is completely removed
• Economical tactic to be utilized for various complex apps
• Repetition reason for molds
• Machining needs to be accurate, and whatever machine you utilize, ensure that the part is appropriate. Aluminum die casting is a favored procedure when talking about producing machine parts or even prototypes. It is being carried out where all the specification needs are high. In short, it's an easy step procedure that can be used as metal parts creation, detailing as well as quality.

Content Resource - https://injectionmoldingsite.wordpress.com/2017/01/17/a-complete-review-of-aluminum-die-casting/
